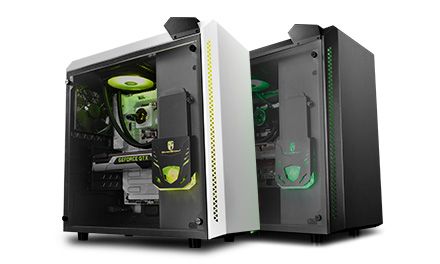

DeepCool BARONKASE LIQUID WHITE

Article: 02487
Out of stock
In stock
Shipping methods
  • Pickup from New Mail
  • New Mail Courier
  • Pickup from the store
  • Other transport services
Payment methods
  • Cash upon receipt
  • Bank transfer
Description

Application For

Intel Socket 150W

LGA20XX/LGA1366/LGA115X


High End Desktop i7
Core i7/i5/i3
Pentium G
Celeron G
AMD Socket 140W

AM4/AM3+/AM3/AM2+/AM2/FM2+/FM2/FM1


Ryzen
APU A12/A10/A8/A6/A4
FX 8/6/4-Core
Phenom II X6/X4/X3/X2
Athlon II X4/X3/X2
Athlon X4

Technical Spec

Materials SPCC(thickness: side panel:0.7mm, Glass: 4mm, Front panel:1.2mm)
Product Dimension (LxWxH) 423×215×470mm
Weight Net Weight:10 kg; Gross Weight:11 kg
I/O Panel 2×USB3.0 /Audio(HD)×1/Mic×1/Manual Controller for RGB
Motherboards ATX/MATX/MINI-ITX
Drive Bays 5.25”Drive Bays×0; 3.5“/2.5”Drive Bays×2; 2.5“Drive Bays×3
Expansion Slots 5
Cooling Fans Pre-installed: Rear: 1×120mm fan; Top: 1×120mm RGB fan Optional: Front: 2×120 or 1×140; Top: 2×120/ 2×140mm Bottom: 2×120mm in case of PSU installed at top
CPU Cooler Compatibility 168mm height limit /Liquid Cooler: 120mm radiator liquid cooling system pre-installed at top; Optional: 120mm radiator at rear; 120/240/140/280mm radiator at top
Power Supply Support ATX PS2 (maximum length: 200mm at bottom, 160mm at top)
Graphic Card Clearance Maximum 340mm length
Carton Dimension 497×282×506mm
Water Block Dimensions 92.5×93×85mm(L×W×H)
Radiator Dimensions 154×120×27mm(L×W×H)(aluminum material)
Fan Dimensions 120×120×25mm RGB Fan
Fan Speed 500±150-1800±10%RPM (4Pin)
Fan Air Flow 69.34 CFM (MAX)
Fan Noise Level 17.8~30dB(A)
Fan Bearing Type Hydro Bearing
Fan Rated Voltage 12VDC
Fan Rated Current 0.32A
Fan Power Consumption 3.84W
Pump Connector 3Pin
Pump Operating Voltage 6~13.8VDC
Pump Rated Voltage 12VDC
Pump Speed 2300±10%RPM
Pump Current 0.2A(MAX)
Pump Power Consumption 2.4W
EAN (WH) 6933412713401
P/N (WH) DP-MATX-BNKSWH-LQD
EAN 6933412713395
P/N DP-MATX-BNKSBK-LQD
