Tenda 4G03

      Hardware

4G Cartgory

  LTE CAT.4

4G/3G standards

  FDD-LTE,TDD-LTE,WCDMA

Working band

  FDD-LTE: B1/B3/B5/B7/B8/B20/B28
  TDD-LTE: B38/B40/B41
  WCDMA: B1/B5/B8

Max 4G speed

  DL:150Mbps UL:50Mbps

Wi-Fi standards

  802.11b/g/n

Wi-Fi frequency

  2.4GHz

Wi-Fi speed

  300Mbps

Wi-Fi transmit Power

  up to 20dBm

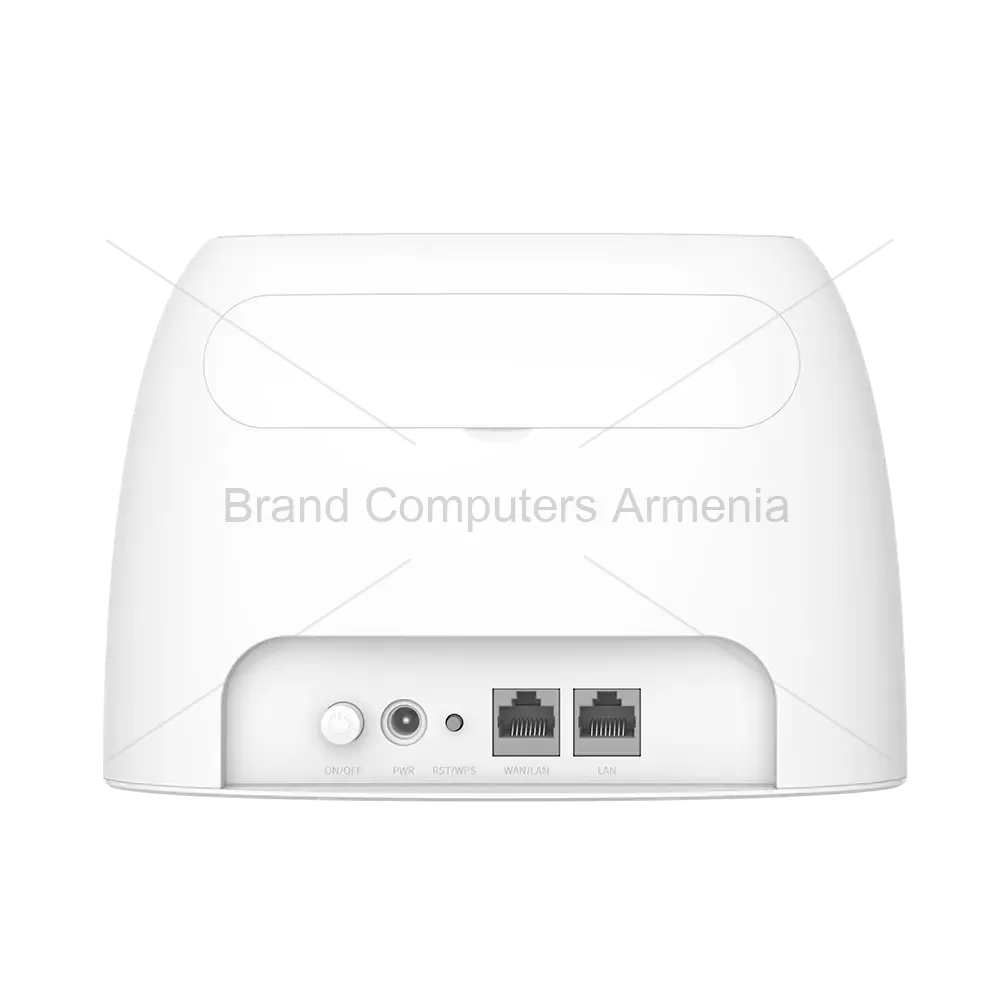

Interface

  1 × 10/100 Mbps LAN/WAN Port
  1 × 10/100 Mbps LAN Port
  1 × 2FF SIM Card Slot

Button

  Power on/off
  WPS/Reset

Antennas

  2 Internal 4G/3G Antennas
  2 Internal Wi-Fi Antennas

LED indicators

  Power
  Wi-Fi
  LAN
  Internet
  4G/3G Signal strength(3 Bars)

Dimensions（L*W*H）

  185*126*60mm

Weight

  About  256g

Power supply

  Power adapter:Input power AC 100V-240V 50/60Hz
  Output power:DC 9V==1A

      Software

WAN Type

  4G/3G or Wired
  Support Failover

Wi-Fi functions

  Wi-Fi name & Wi-Fi key
  Channel & Bandwidth
  Guest Network
  Wi-Fi schedule
  Wireless repeating
  Transmit power
  WPS

Wi-Fi security

  WPA-PSK, WPA2-PSK, WPA/WPA2

Software features

  APP/WEB
  DHCP Server
  VPN(PPTP Client/L2TP Client/PPTP Server)
  Firewall
  QOS
  Upgrade firmware from local or OTA
  IPV4/IPV6

      Certifications

Certifications

  CE
  ROHS
  SIRIM

      Working Environment

Temperature

  Operating Temperature : 0℃~40℃
  Storage Temperature : -40℃ ~70℃

Humidity

  Operating Humidity : 10 %~90% RH non-condensing
  Storage Humidity : 5 %~ 90%RH non-condensing

      Package Contents

Package lists

  1 * 4G LTE Router
  1 * Ethernet cable
  1 * Power adapter
  1 * Quick Installation Guide
