Tenda TEF1106P-4-63W

      Hardware

Network standards

  IEEE 802.3/3u/3x, IEEE 802.3af/at

LED Indicator

  6 * Link/Ack LED indicators
  1 * Power LED indicator

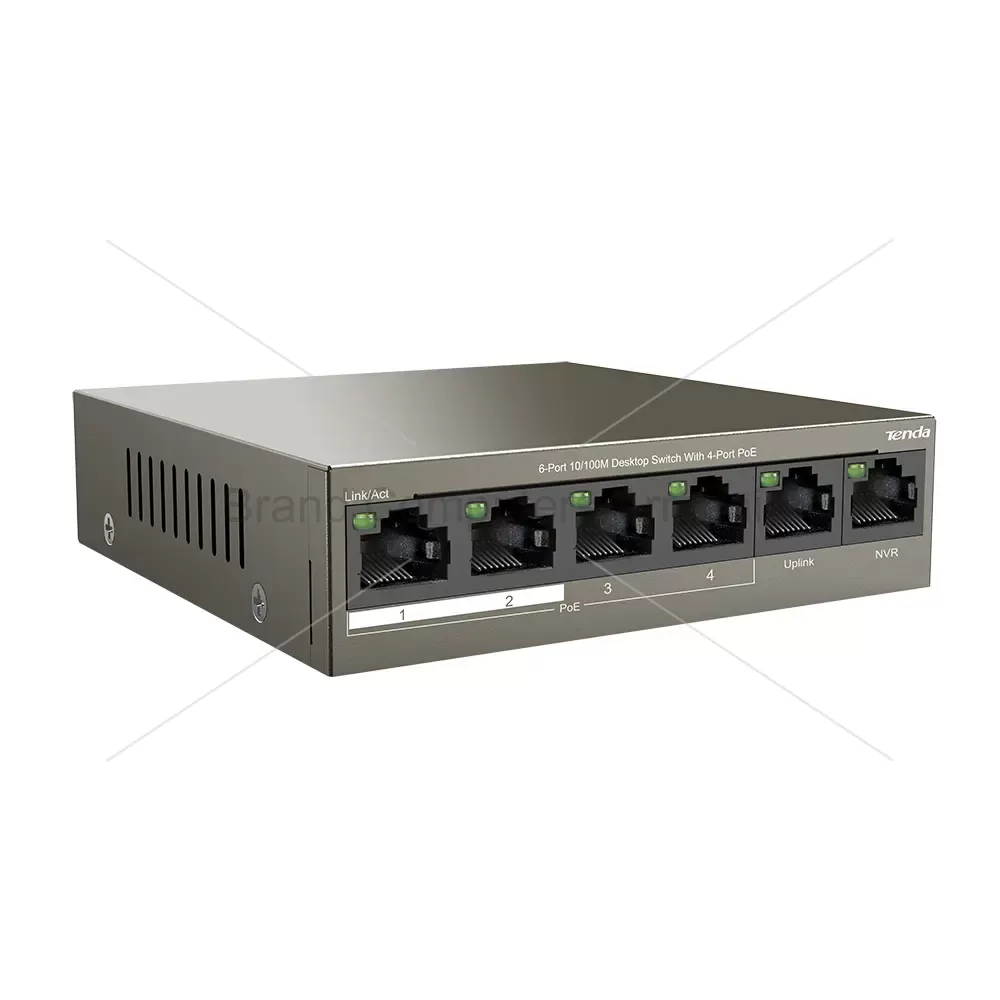

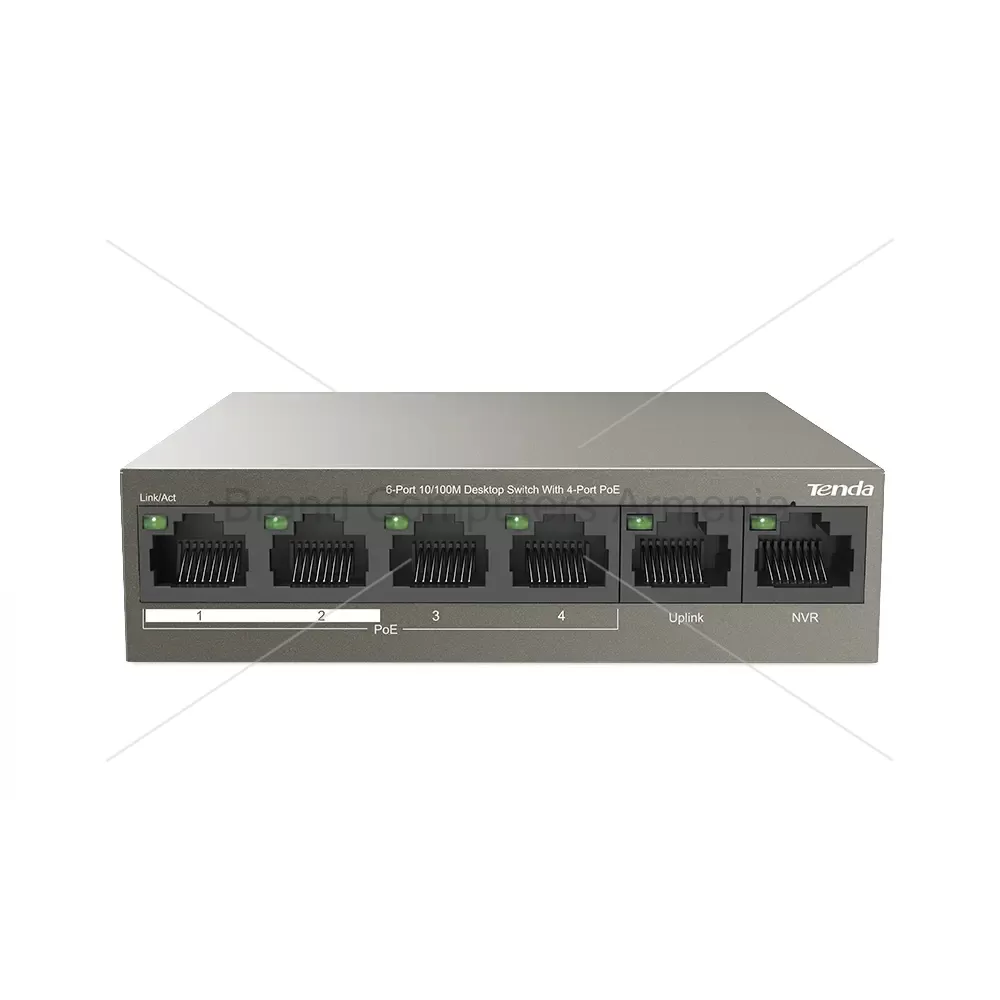

Interfaces

  4*10/100 Base-TX Ethernet ports(Data/Power)
  2*10/100 Base-TX Ethernet ports (Data)

Transmission media

  Recommended: CAT5/5e UTP or better

Dimension

  100.0mmx100.0mmx26.0mm

Level of protection

  Lightning protection for ports: 6KV
  Lightning protection for power: 4KV
  ESD:
  Air discharge: ±10kV
  Contact discharge: ±8kV

Forwarding mode

  Store-and-forward

Switch capacity

  1.2 Gbps

Packet forwarding rate

  0.89Mpps

Buffer

  448K

MAC address table

  1 K

PoE budget

  Single port: AF: 15.4W, AT: 30W
  Whole device: 63W

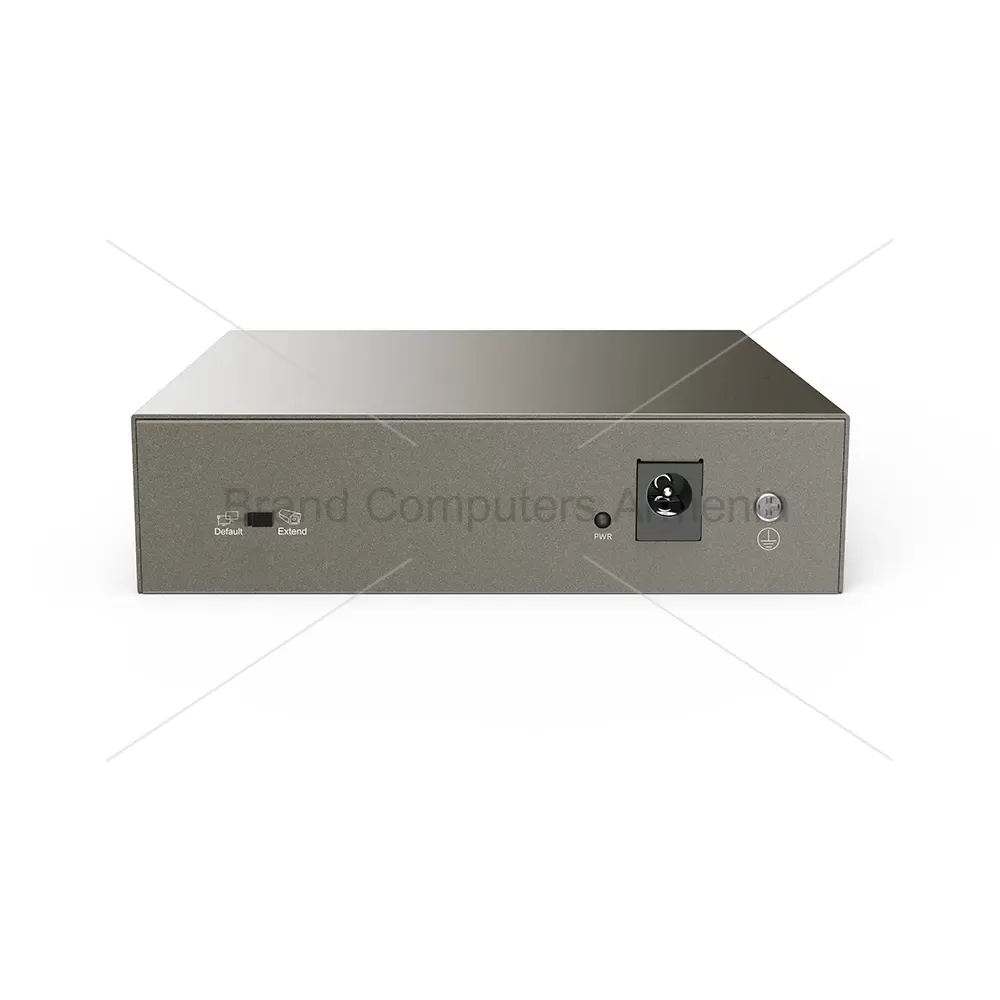

Input voltage

  100－240V AC 50/60Hz
  51V /1.25A DC（Power Adapter ）

Mounting

  Desktop mounting: support
  Wall mounting: support
  Rack mounting:non-support

Environment

  Operating Temperature: 0℃~45℃
  Storage Temperature: -40℃~70℃
  Operating Humidity: 10%~90% non-condensing
  Storage Humidity: 5%~90% non-condensing

Certification

  FCC、CE、RoHS

      Software

Funtions

  Standard: the switch functions as a common unmanaged switch and all the ports of the switch can communicate with each other.
  Extend Mode: If Extend mode is enabled, Port 1-4 will be isolated respectively (10Mbps auto-negotiation)
  .And the delivery distance of powering and network data is up to 250m (10Mbps)
  .
