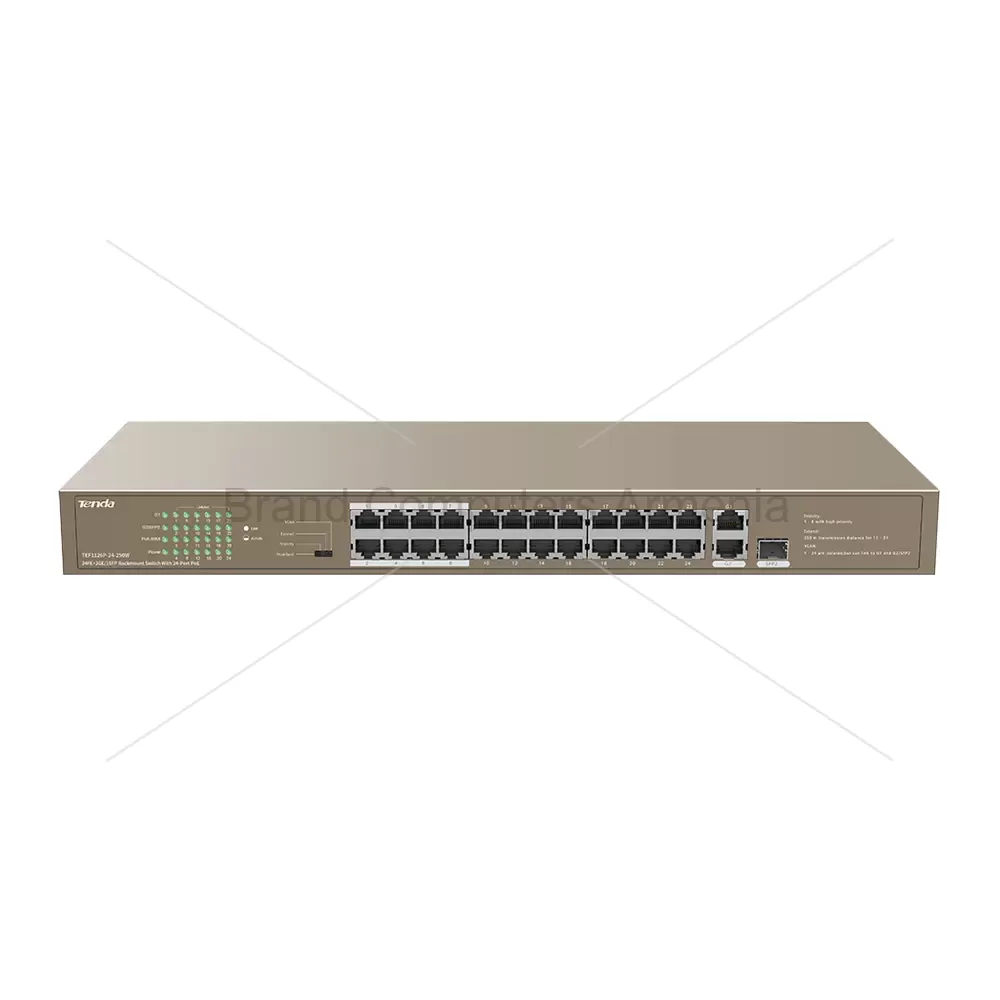

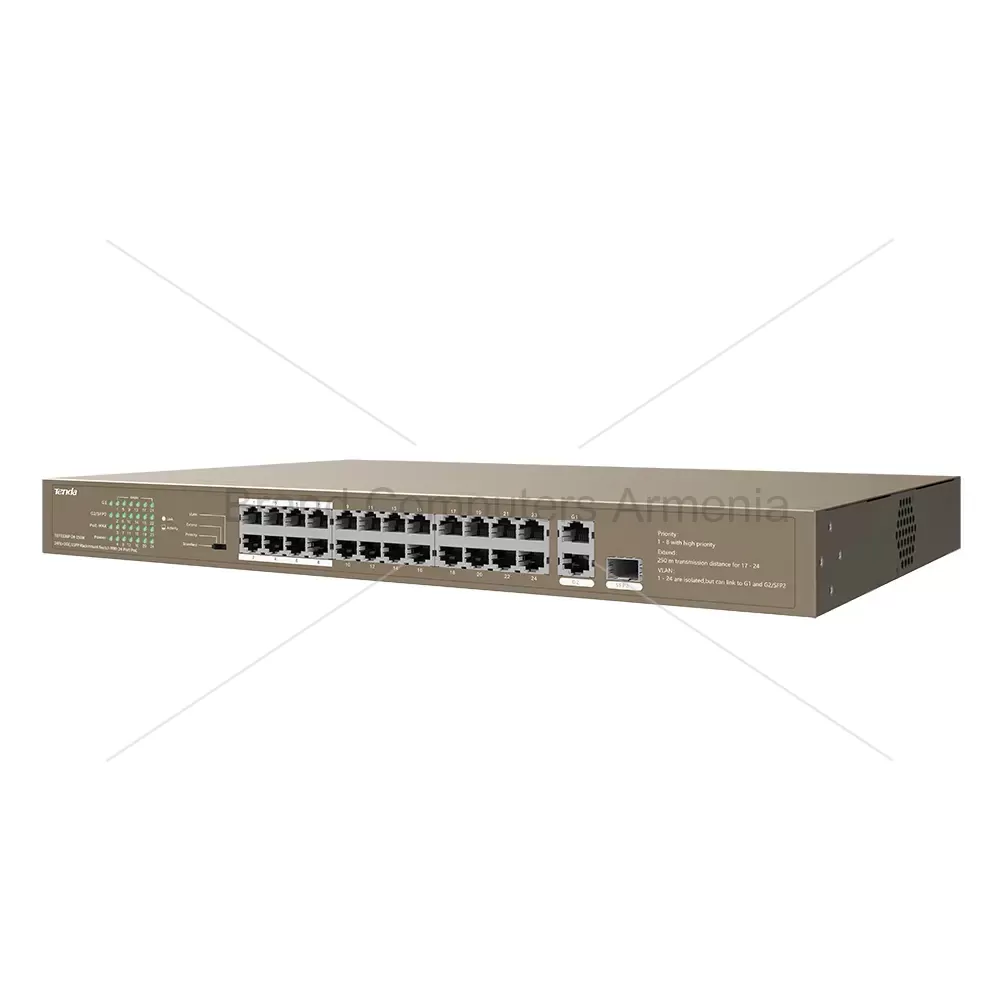

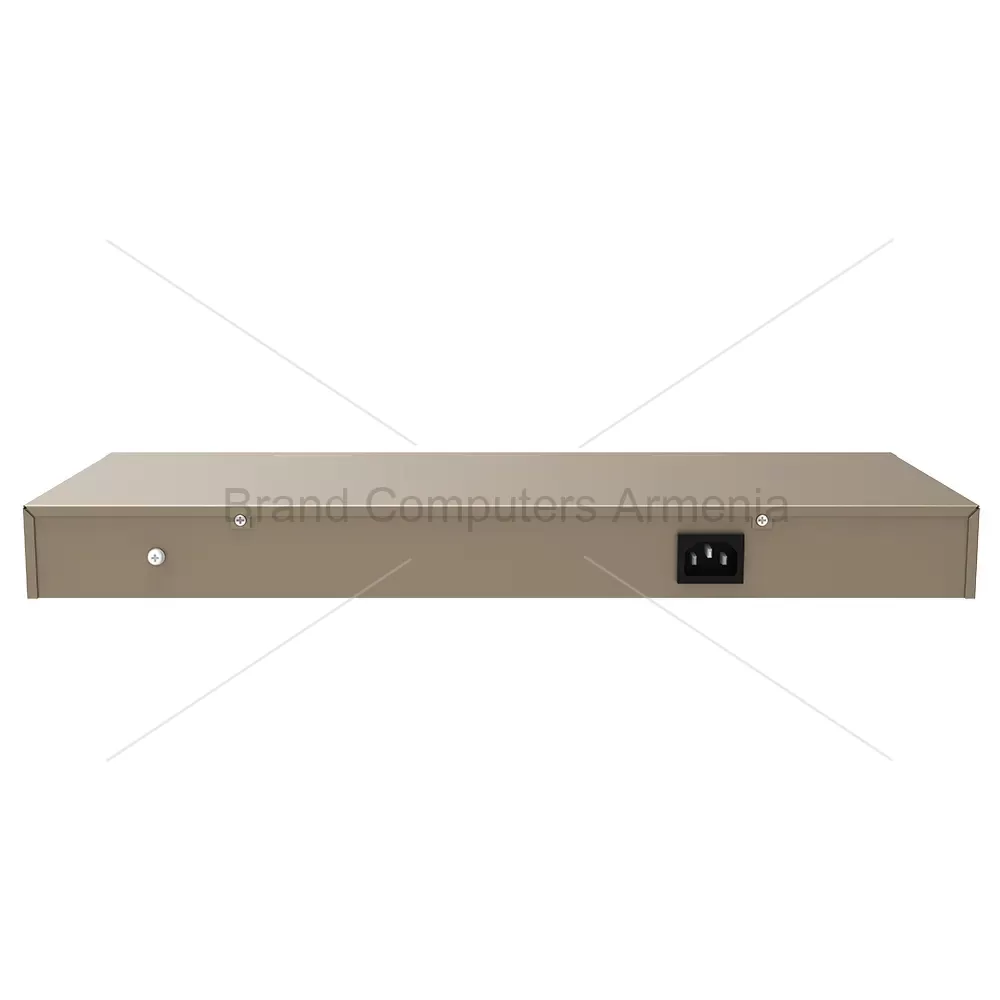

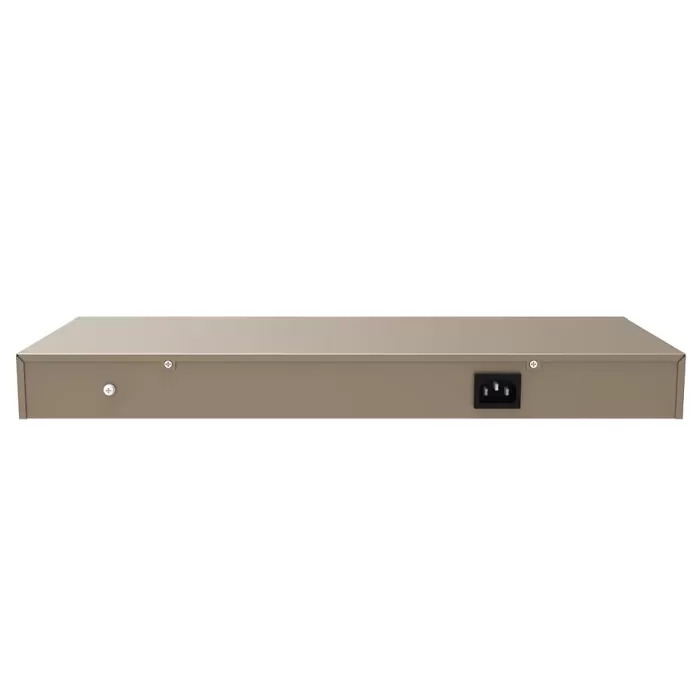

Tenda TEF1126P-24-250W

      Hardware

Network standards

  IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x, IEEE802.3af/at

LED Indicator

  24 * Link/Act LEDs
  1 * G1 LED
  1 * G2/SFP2 LED
  1 * PoE-MAX LED
  1 * Power LED

Interfaces

  24 * 10/100 Base-TX Ethernet ports (Data/Power)
  2 * 10/100/1000 Base-T Ethernet ports (Data)
  1 * 1000 Base-X SFP port (Combo)

Transmission media

  Recommended: CAT5/5e UTP or better

Fan quantity

  1

Dimension

  440.0mmx178.8mmx44.0mm

Level of protection

  Lightning protection for ports: 6kV
  Lightning protection for power: 6kV
  ESD:
  Air discharge: ±10kV
  Contact discharge: ±8kV

Forwarding mode

  Store-and-forward

Switch capacity

  8.8 Gbps

Packet forwarding rate

  6.55 Mpps

Buffer

  4M

MAC address table

  16K

PoE budget

  Single port: AF: 15.4W, AT: 30W
  Whole device: 230W

Input voltage

  100-240V AC 50/60Hz

Mounting

  Desktop mounting: support
  Wall mounting: support
  Rack mounting : support

Environment

  Operating Temperature: 0℃~45℃
  Storage Temperature: -40℃~70℃
  Operating Humidity: 10%~90% non-condensing
  Storage Humidity: 5%~90% non-condensing

Certification

  FCC、CE、RoHS
