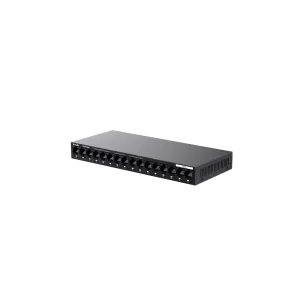

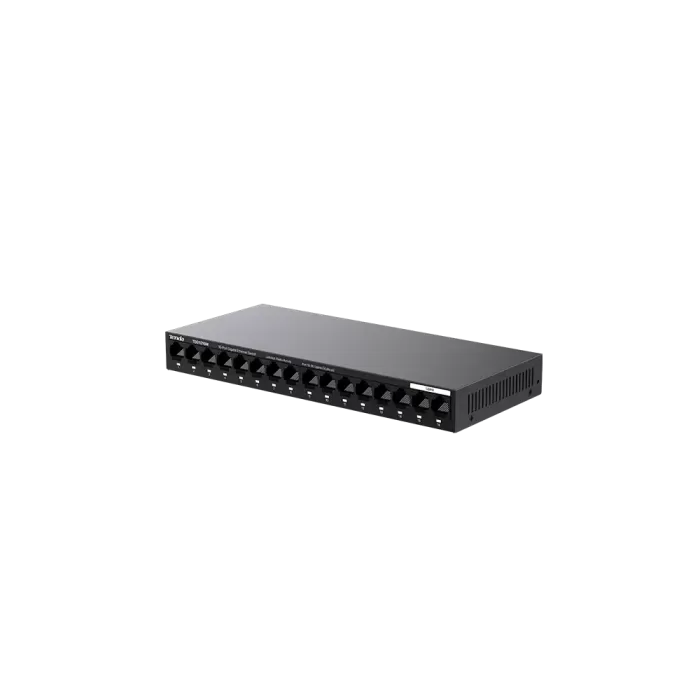

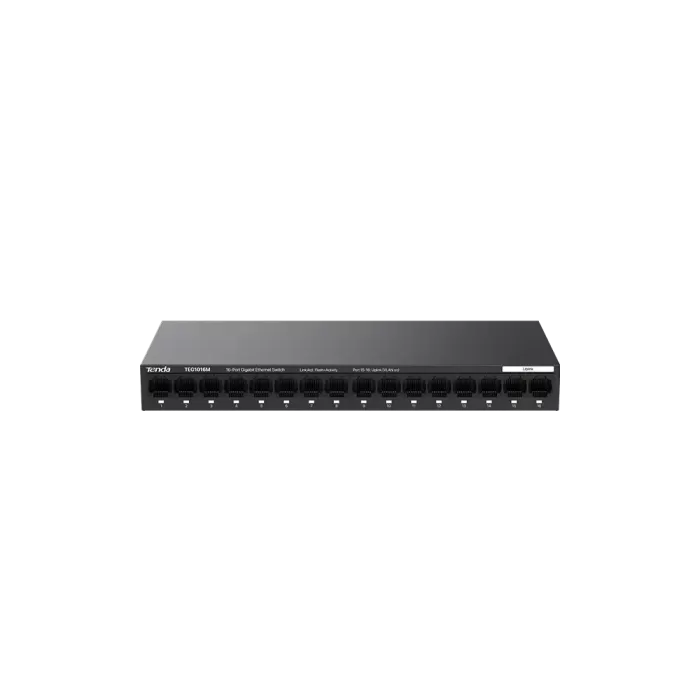

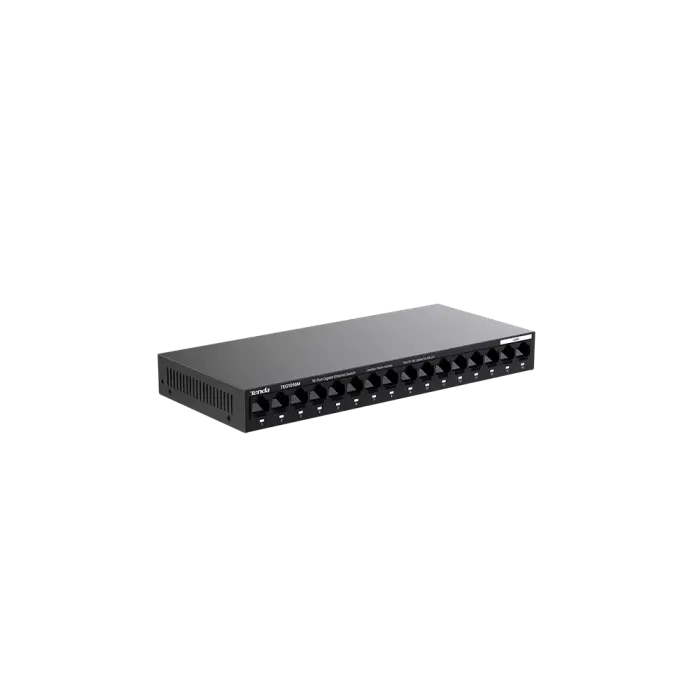

Tenda TEG1016M

      Hardware

Network standards

  IEEE802.3
  IEEE802.3u
  IEEE802.3x
  IEEE802.3ab

LED Indicator

  One Link/Act LED indicator for each Gigabit port
  One Power LED indicator for each device

Interfaces

  16*10/100/1000Base-T Ethernet ports

Transmission media

  Ethernet: CAT3 UTP or better
  Fast Ethernet: CAT5 UTP or better
  Gigabit Ethernet: CAT5e UTP or better

Dimensions

  235mmx103mmx27mm

Material

  Metal

Level of protection

  Lightning protection for port: 6 kV
  Lightning protection for power: N/A
  Electrostatic protection:
  -Air discharge: ±8 kV
  -Contact discharge: ±6 kV

Forwarding mode

  Store-and-forward

Switch capacity

  32Gbps

Forwarding rate

  23.8Mpps

Buffer

  2Mb

MAC address table

  8K

Power method

  Input: 100 - 240V AC 50/60Hz, 0.4A
  Output: 12V 1A

Power consumption

  Max: <12 W

Mounting

  Desktop mounting: support
  Wall mounting: support
  Rack mounting:non-support

Environment

  Operating temperature: 0°C - 40℃
  Storage temperature: -40°C - 70°C
  Operating humidity: (10% - 90%) RH, non-condensing
  Storage humidity: (5% - 90%) RH, non-condensing

Certifications

  CE, FCC, RoHS

Funtions

  One-key VLAN (In this mode, ports 1 to 14 cannot communicate with each other, but can communicate with ports 15 to 16.)
