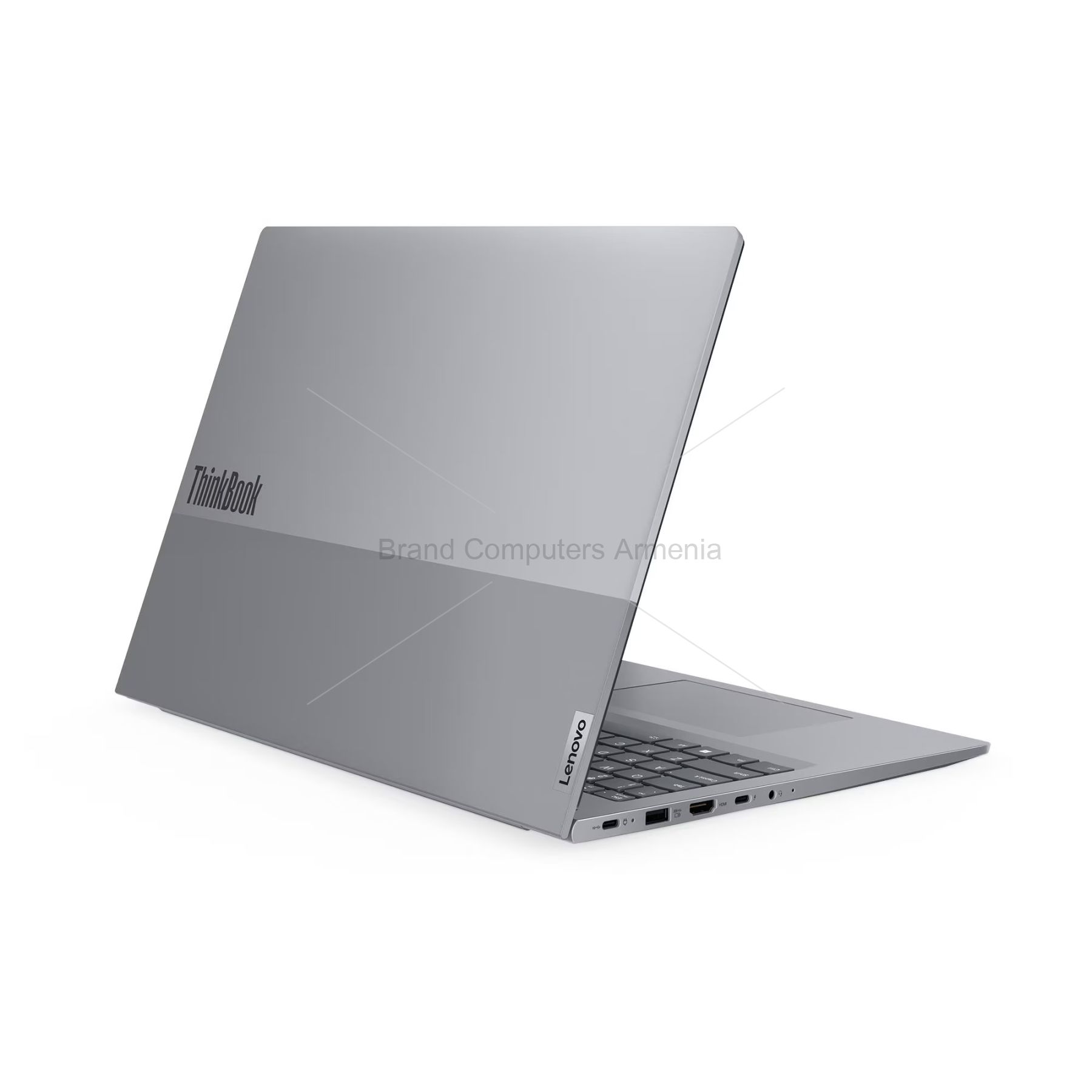

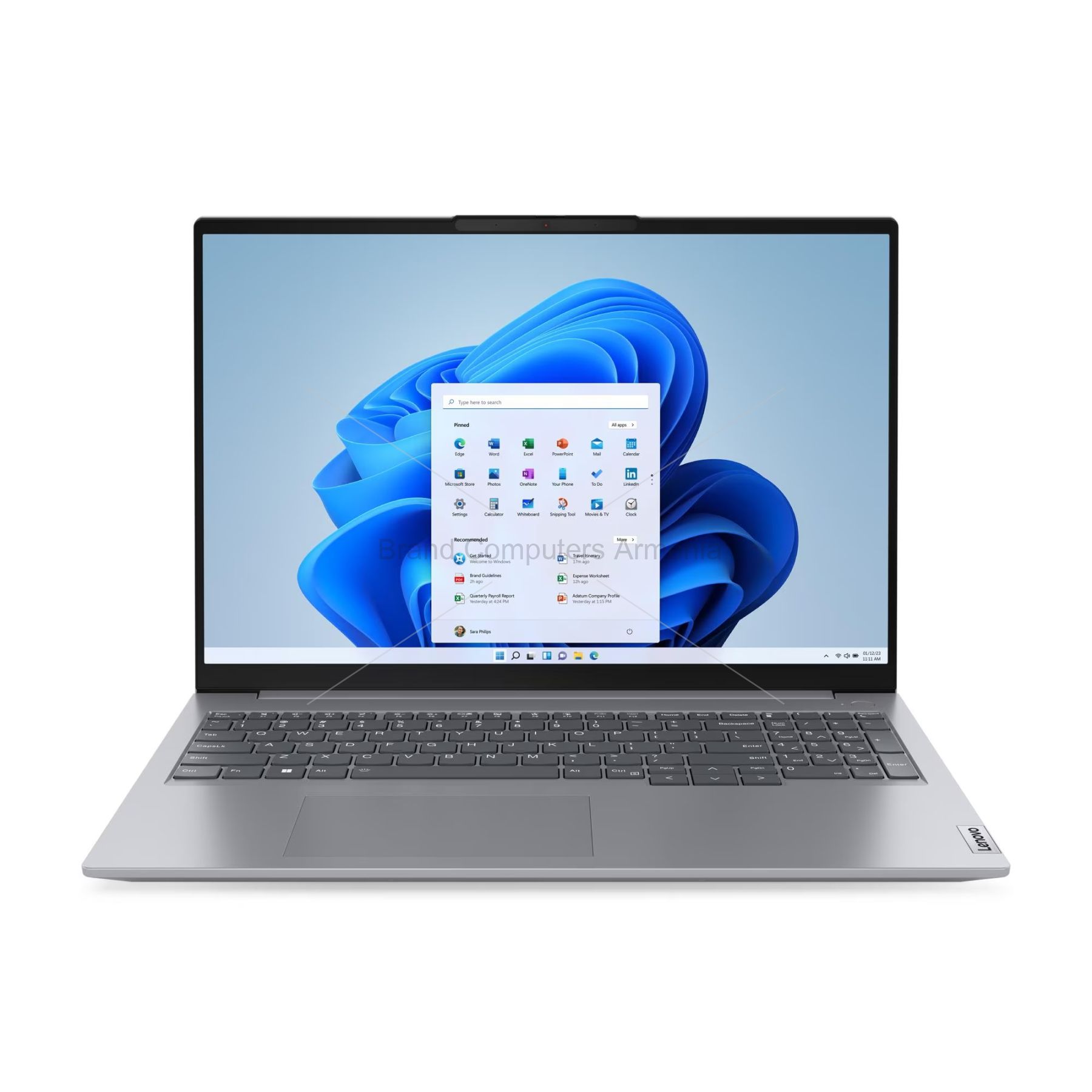

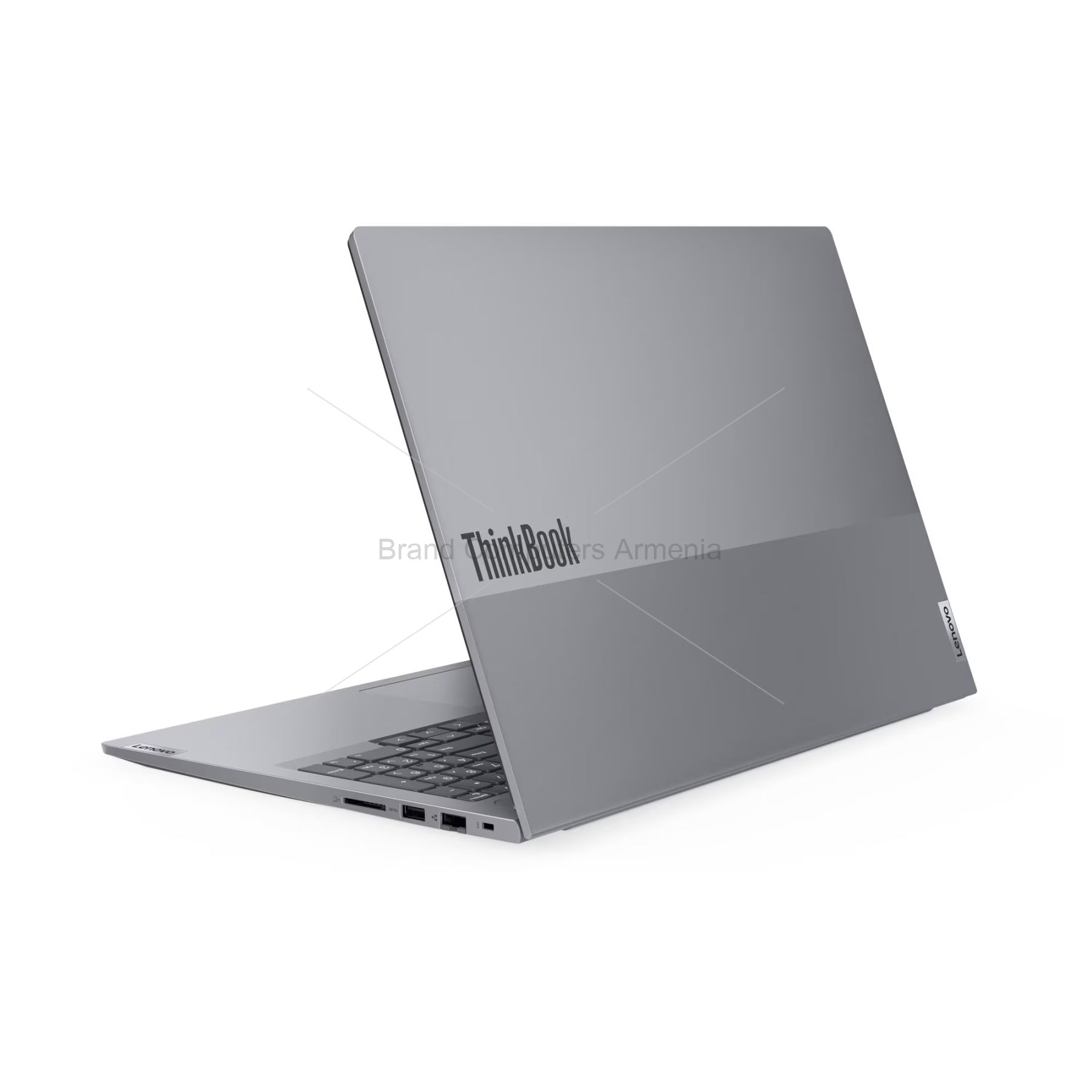

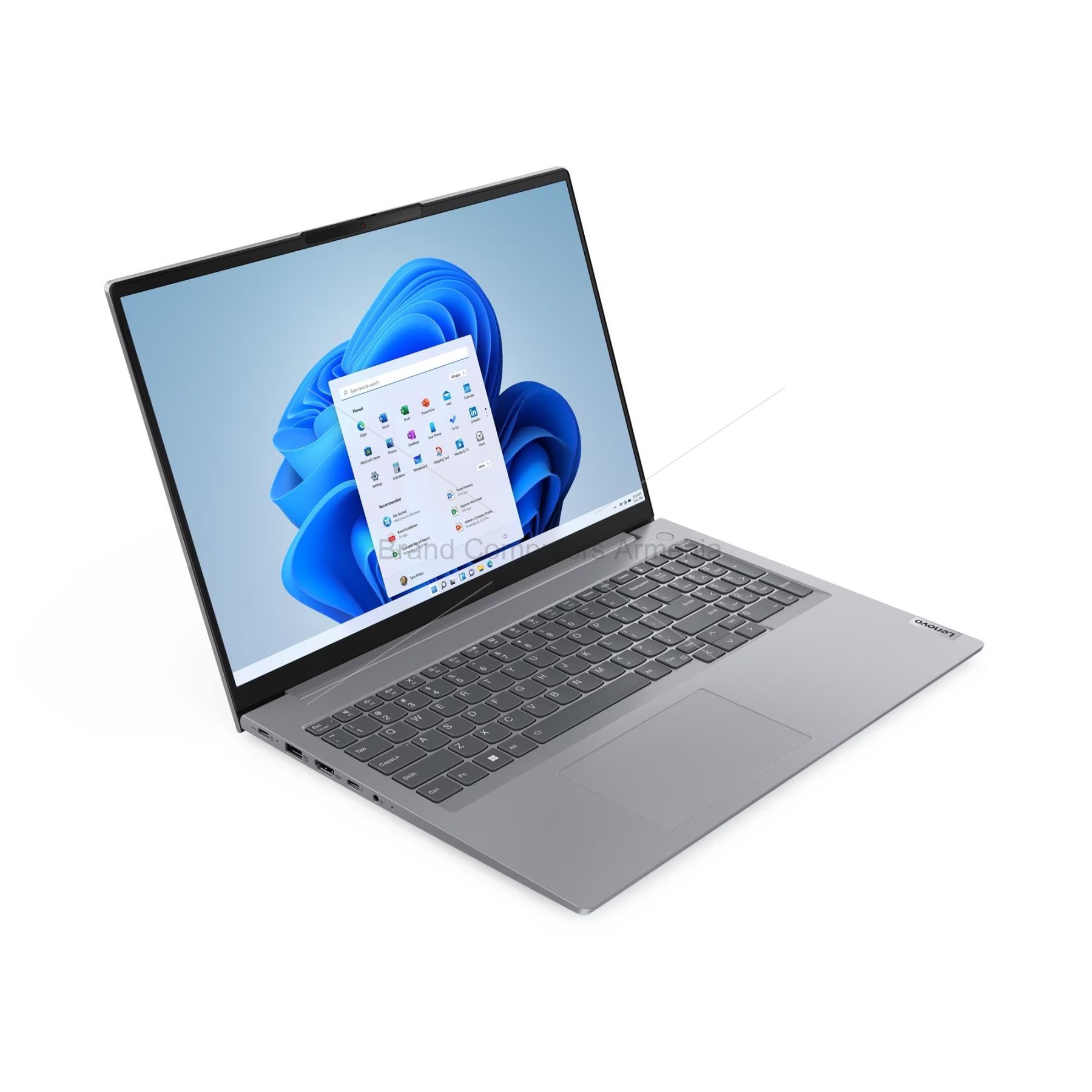

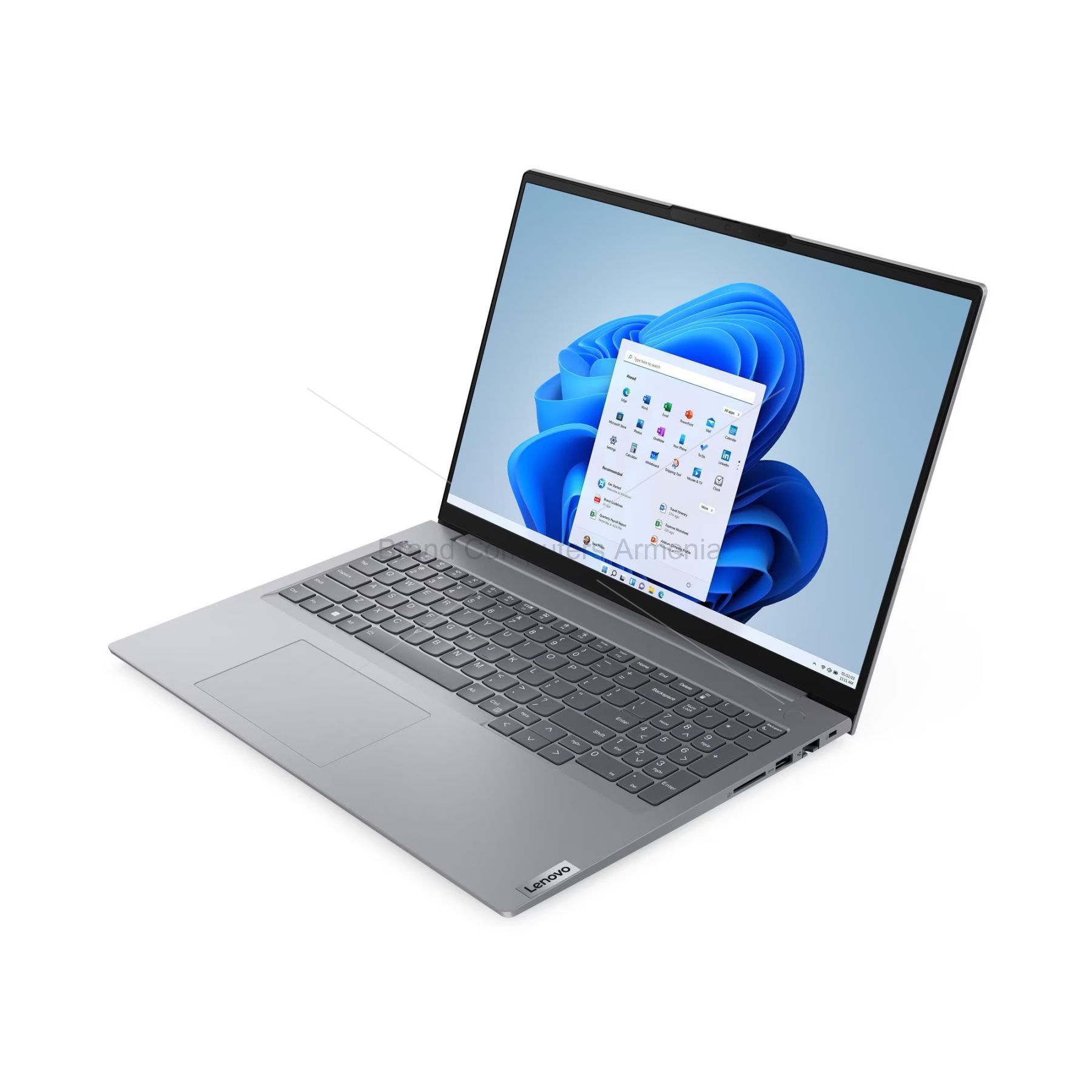

ThinkBook 16 G6 IRL

PERFORMANCE

Processor
Intel® Core™ i7-13700H, 14 Cores (6P + 8E) / 20 Threads, Base Frequency 2.4GHz, Max Turbo up to 5.0GHz, 24MB Intel® Smart Cache

AI PC Category
Not specified

NPU
Not specified

Graphics
Integrated Intel® UHD Graphics

Chipset
Intel® SoC Platform

Memory
1x 16GB DDR5-5200 SO-DIMM

Memory Slots
Two DDR5 SO-DIMM slots, dual-channel capable

Max Memory
Up to 64GB DDR5-5200

Storage
512GB SSD M.2 2242 PCIe® 4.0x4 NVMe® TLC

Max Storage Support
Up to two M.2 SSDs

Storage Slot
Supports M.2 2242 / 2280 PCIe® 4.0 x4 SSDs

Card Reader
SD Card Reader

Optical
None

Audio Chip
High Definition (HD) Audio

Speakers
Stereo speakers, Dolby Audio™

Camera
FHD 1080p + IR Hybrid Camera with Privacy Shutter

Microphone
Dual array microphones

Battery
Not specified (typically 45Wh for this class)

Power Adapter
65W USB-C®

Special Features
Fingerprint Reader on Power Button, IR Camera for Windows Hello

DESIGN

Display
16" WUXGA (1920x1200), IPS, Anti-glare, 300 nits, 45% NTSC, 60Hz

Touchscreen
None

Color Calibration
None

Keyboard
Backlit Keyboard (likely English or localized, not specified)

Touchpad
Buttonless Mylar® surface, multi-touch, Precision TouchPad, 75 x 120 mm

Case Color
Arctic Grey

Surface Treatment
Anodizing Sandblasting

Case Material
Aluminum (Top), PC-ABS (Bottom)

Pen
Pen Not Supported

Dimensions (WxDxH)
356 x 253.5 x 17.5 mm (14.01 x 9.98 x 0.69 inches)

Weight
Starting at 1.7 kg (3.75 lbs)

SOFTWARE

Operating System
None

Bundled Software
None

CONNECTIVITY

WLAN + Bluetooth
Wi-Fi® 6 (802.11ax) 2x2 + Bluetooth® (likely BT5.2 or BT5.3)

WWAN
Not supported

Ethernet
100/1000M (RJ-45)

Standard Ports

• 2x USB-A 3.2 Gen 1 (1 Always On)

• 1x USB-C® 3.2 Gen 2 (10Gbps, PD 3.0, DisplayPort™ 1.4)

• 1x Thunderbolt™ 4 / USB4® (40Gbps, PD 3.0, DisplayPort™ 2.1)

• 1x HDMI® 2.1 (up to 4K/60Hz)

• 1x Headphone / Microphone combo jack (3.5mm)

• 1x RJ-45 Ethernet

• 1x SD card reader

Docking
Supports Thunderbolt™ and USB-C® docking solutions

SECURITY & PRIVACY

Security Chip
Firmware TPM 2.0

Fingerprint Reader
Integrated in Power Button, Match-on-Chip

Physical Locks
Kensington® Nano Security Slot™

Other Security
Camera Privacy Shutter, IR Camera for Windows Hello (Facial Recognition)

MANAGEABILITY

System Management
Non-vPro®

SERVICE

Base Warranty
1-Year Depot (Courier or Carry-in)

Included Upgrade
2-Year Depot Upgrade from 1-Year Depot WHB (CPN)

ACCESSORIES

Bundled Accessories
None

CERTIFICATIONS

Green Certifications

• RoHS Compliant

• ErP Lot 6/26

Other Certifications

• MIL-STD-810H Passed

• TÜV Rheinland® Low Blue Light (Software Solution)
