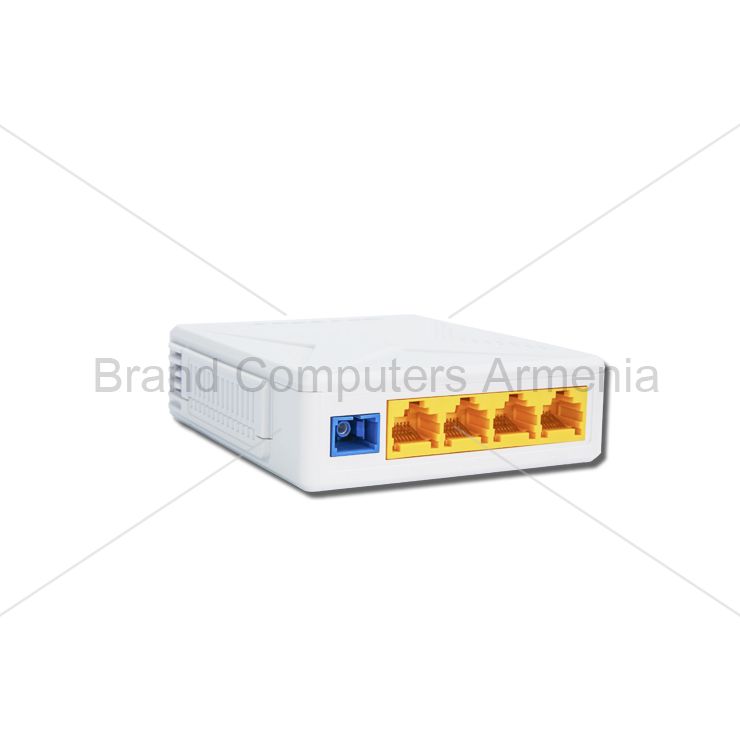

VSOL V2804Z-LE

Article: 03011
VSOL V2804Z-LE
VSOL
Leave review
Out of stock
In stock
Shipping methods
  • Pickup from New Mail
  • New Mail Courier
  • Pickup from the store
  • Other transport services
Payment methods
  • Cash upon receipt
  • Bank transfer
Description Reviews
Description
Special Features

   ► Plug and play, features auto-detecting, auto-configuration, and auto firmware upgrade, etc.
   ► Integrated OAM remote configuration and maintenance function.
   ► Support rich QinQ VLAN functions and IGMP Snooping multicast features.
   ► Fully compatibility with OLT based on Broadcom/PMC/Cortina chipset.
   ► Support NAT, Firewall function.
   ► Support IPv4 and IPv6 dual stack.
   ► The WAN port supports bridge, router and bridge/router mixed mode.



   Technical parameters


Technical items
Description
V2804ZL
Main chip
ZTE
PON interface  1 EPON interface, SC single-mode/single-fiber, symmetric 1.25Gbps
PON Port Type  BOSA
Wavelength  EPON Tx 1310nm, EPON Rx 1490nm
Sensitivity  <-27dBm(PX20+)
Overload  > -3dBm(PX20+)
Optical interface  SC/PC connector
LAN interface  4*10/100/Mbps auto adaptive Ethernet interfaces, RJ45
Indicators  8 indicators, for status of power supply, PON, LAN .
DC power supply  +12V, external AC-DC power adaptor
Power consumption  ≤9W
Operating condition  Operating temp: -5~+55℃
 Operating humidity:10~90%(non-condensed)
Storing condition  Storing temp: -30~+60℃
 Storing humidity:10~90%(non-condensed)
Dimension  30mm×92mm×100mm (H×W×D)
Net weight  0.4k

   Function Description

Data Service Functions
    ► Full speed non-blocking switching.
    ► 2K MAC address table.
    ► 64 full range VLAN ID.
    ► Support QinQ VLAN, 1:1 VLAN, VLAN reusing, VLAN trunk, etc.
    ► Integrated port monitoring, port mirroring, port rate limiting, port SLA, etc.
    ► Support auto polarity detection of Ethernet ports (AUTO MDIX).
    ► Integrated IEEE802.1p QoS with four level priority queues.
    ► Support IPv4 IGMP snooping and IPv6 MLD snooping.
    ► Support bridge, router and bridge/router mixed mode.
