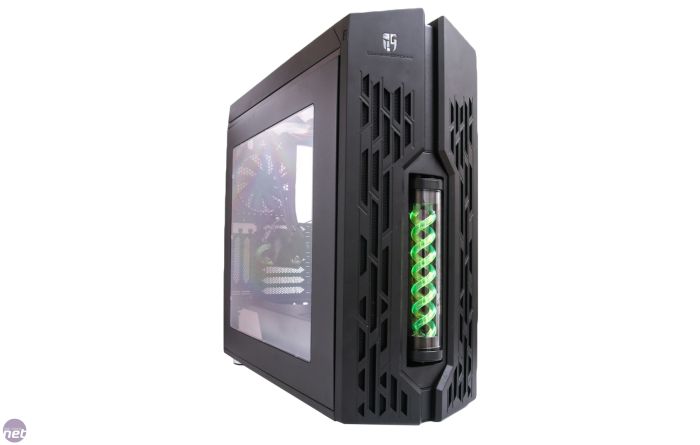

DeepCool GENOME II BK-GN

Application For
Intel Socket 150W

LGA20XX/LGA1366/LGA115X

High End Desktop i7
Core i7 Extreme/i7/i5/i3
Pentium G
Celeron GAMD Socket 220W

AM4*/AM3+/AM3/AM2+/AM2/FM2+/FM2/FM1
Ryzen

APU A10/A8/A6/A4
FX 8/6/4-Core
Phenom II X6/X4/X3/X2
Phenom X4/X3/X2
Athlon II X4/X3/X2
Athlon X4/X2
Athlon
Sempron
Business Class

Note: AM4 Kit availability may differ by region, please check with your local retailer for more information.
Technical Spec
Motherboards (MAX:305×275MM)E-ATX/ATX/MICRO ATX/MINI-ITX
Materials SGCC+PLASTIC (ABS)(Panel thickness: 0.8mm)
Product Dimension (LxWxH) 506×210×505 MM
Net Weight 9.77 kg
Gross Weight 12.09 kg
Liquid Cooler Compatibility 120/240mm at front; 120/240/280/360mm at top
3.5" Drive Bays 2
2.5" Drive Bays 2
I/O Panel 2×USB3.0/Audio(HD)×1/Mic×1
Expansion Slots 7 (plus 2 extra slots for vertical VGA card installation)
Cooling Fans Pre-installed: Rear: 1×120mm fan; Top: 360mm liquid cooling system; Optional: Front: 2×120mm or 1×200mm fan
Power Supply Type ATX PS2
VGA Compatibility 330mm
Carton Dimension 575×285×600 mm
Color of LED Lights White
Radiator Dimensions 395×120×32mm
Fan Dimensions 120×120×25mm(3PCS)
Fan Speed 500±200-1800±10%RPM (4Pin)
Fan Air Flow 229.56CFM（MAX）
Fan Noise Level 17.6~31.3dB(A)
Fan Bearing Type Hydro Bearing
Fan Rated Voltage 12VDC
Fan Rated Current 0.18±10%A(MAX)
Fan Power Consumption 2.16W
Pump Connector 3Pin
Pump Operating Voltage 6~13.8VDC
Pump Rated Voltage 12VDC
Pump Speed 2300±10%RPM
Pump Load Current 0.2A（Max）
Pump Power Consumption 1.92W
Net Weigt 2093±10g (liquid cooling system only)
EAN (WH-BL;AM4) 6933412713333
P/N (WH-BL;AM4) DP-ATXLCS-GEN-WHBL3
EAN (BK-GN;AM4) 6933412713326
P/N (BK-GN;AM4) DP-ATXLCS-GEN-BKGN3
EAN (BK-RD;AM4) 6933412713319
P/N (BK-RD;AM4) DP-ATXLCS-GEN-BKRD3
EAN (WH-BL) 6933412713159
P/N (WH-BL) DP-ATXLCS-GEN-WHBL2
EAN (BK-GN) 6933412713142
P/N (BK-GN) DP-ATXLCS-GEN-BKGN2
EAN (BK-RD) 6933412713135
P/N (BK-RD) DP-ATXLCS-GEN-BKRD2
