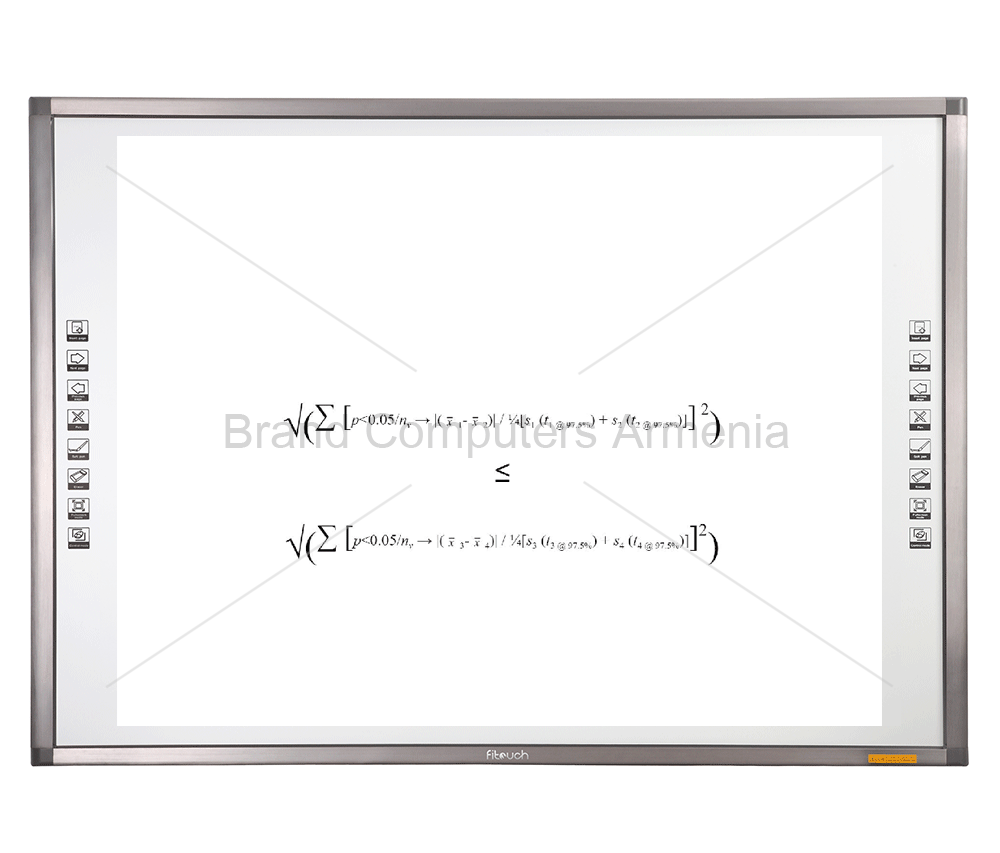

FIT TOUCH FIT-TBI94IU

Electrical parameters

voltage range

DC 5.0V±5%

Power consumption

Less than or equal to 1W (200mA DC5V)

Power supply

USB power supply does not require an external power supply

ESD

EN61000-4-2, class 4, contact discharge 8KV, air discharge 15KV

Safety

CE, FCC Class B

Certification

RoHs

Support operating system

WIN10, WIN8, WIN7, WIN2000/... Linux, Mac OS, Android

Communication method

USB2.0 FS, drive-free, plug and play

Interface (optional)

USB/PH2.0 5PIN/ Custom

Touch parameter

Inductive object

Opaque objects such as fingers and pens

Positioning Technology

Non-contact infrared sensing positioning technology

Resolution

32768(W)×32768(D)

Cursor speed

Up to 300 points / second

Mouse function

Completely replace the mouse, support click, double click and right click

positioning accuracy

90% regional positioning error <1mm in edge positioning error <3mm

Do you support more?

2, 4, 6

Touch life

Unlimited number of times

hot key

20 physical shortcuts on both sides

Environmental parameters

temperature

Working temperature: -20 °C ~ 60 °C

85° storage temperature: -30°C ~ C

humidity

Working humidity: 20% ~ 90%

Storage humidity: 10%~90%

Resistance to external light test

Incandescent lamp (220V, 100W), vertical distance of 350mm or more

The illumination of the sun shines up to 90000Lux

workplace

Under strong light, indoors
