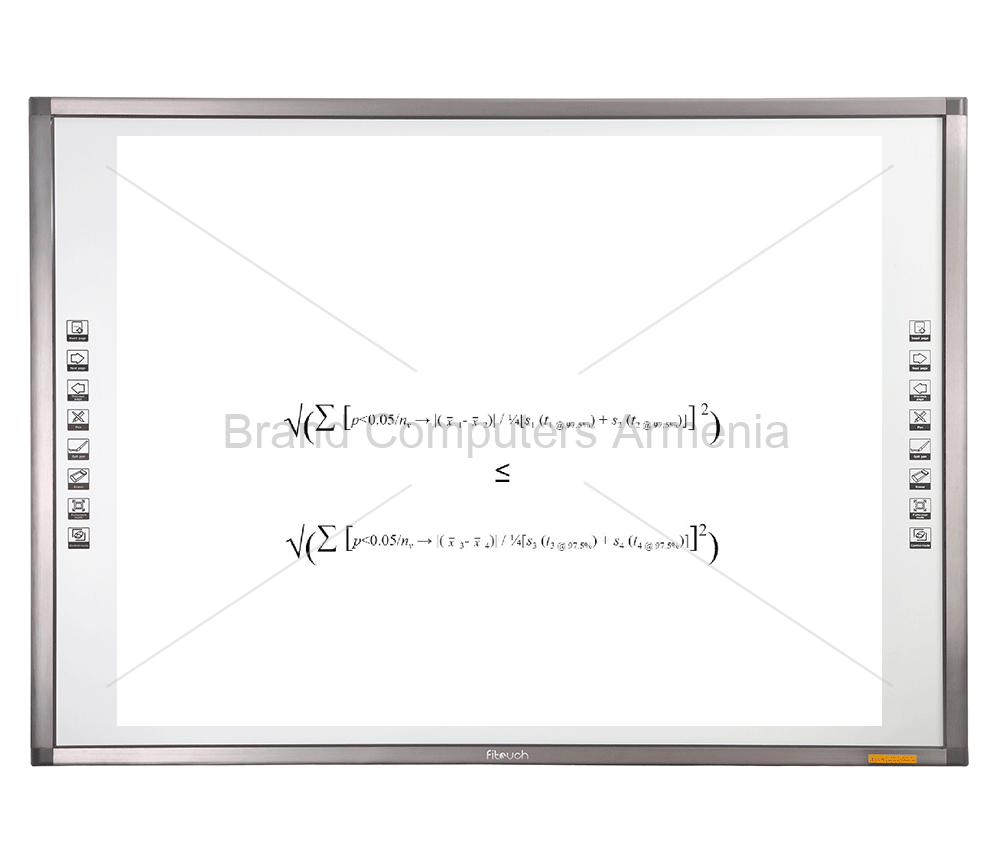

Fitouch IR Touch 94" Interactive Whiteboard FIT-TBI94D

Оставить отзыв

Нет на складе

Есть в наличии

Способы доставки

Самовывоз из магазина
Другие транспортные службы

Способы оплаты

Наличными при получении
Безналичный перевод

Описание

Appearance	Frame Material	Alluminum Alloy(Iron-grey color)
	Whiteboard material(optional)	1. Nano surface+XPS+Galvanized board
		2. Nano surface+Aluminium honeycomb+Galvanized board
		3. Ceramic surface+Aluminum honeycomb+Galvanized board
	Frame Demension	2014mm x 1252mmx 31mm
	Shortcut menu	20 shortcut
	Effective touch area	1953.5mm x 1191.5mm(including shortcut menu)
	Touchable Diagonal length	2288.2mm(90.1" including shortcut menu)
	Effective projection area	1906.4 x 1191.5mm
	Frame diagnal length	2370.52mm (93.3")
	Effective aspect ratio	16:10
	Packing dimension	2185mm x 1395mm x 75mm
	Gross Weight	26.65 KG(net weight18.75KG)

Electrical parameters	Voltage range	DC 5.0V±5%
	Comsuption	<=1W (200mA DC 5V)
	Power supply	USB supply
	ESD	EN61000-4-2,4 grade,Contact discharge 4KV, air discharge 8KV
	Certificates	CE,FCC Class B,ROHS
	Test reports	anti-static, anti-salt fog, anti-collision, anti-UV, anti-dead point, anti-ionizing radiation, MTBF, temperature and humidity and environmental adaptability
	Operation system	WIN8,WIN7,WIN2000/XP/Vista, Linux, Mac OS, Android
	Communication	USB2.0 FS,WIN free drive,Android,Linux drive needed

Touch parameters	Sensitive Object	Non-transparent object finger/pen etc
	Positioning technology	Non-contact infrared sensing positioning technology
	Coordinate Output	32768(W) × 32768(D)
	Response rate	Multi-touch mode:click:15ms continuous:8ms
	Response rate	Single touch mode:click:13ms continuous:3ms
	Cursor speed	Max 300dots/S
	Effective touch object size	≥ Ø8mm
	Mouse function	Replace mouse,support single click,double click etc
	Position Accuracy	90% area deviation<2mm corner deviation<5mm
	Multi-touch	10 touch points
	Touch lifespan	Over 60 million times at the same location

Environment parameters	Temperature	Working temperature:0 °C ~ 40 °C
	Temperature	Storage temperature:-20°C ~ 60°C
	Humidity	Working humidity:10% ~90% No condensation
	Humidity	Storage humidity:10%~90% No condensation
	Relative humidity	40 °C,90% RH
	Resistance to external light test	Incandescent lamp (220V,100W) ,vertical distance 350mm and more
	Resistance to external light test	Illuminance of sunlight reach 90000Lux
	Working environment	Strong light,outdoor,indoor
Packing List	Electronic Whiteboard	*1
	Whiteboard pen	*2
	Manuel	*1
	Warranty card	*1
	USB cable	*1
	Movable stand(optional)	*1
	Wall-mount	*1
