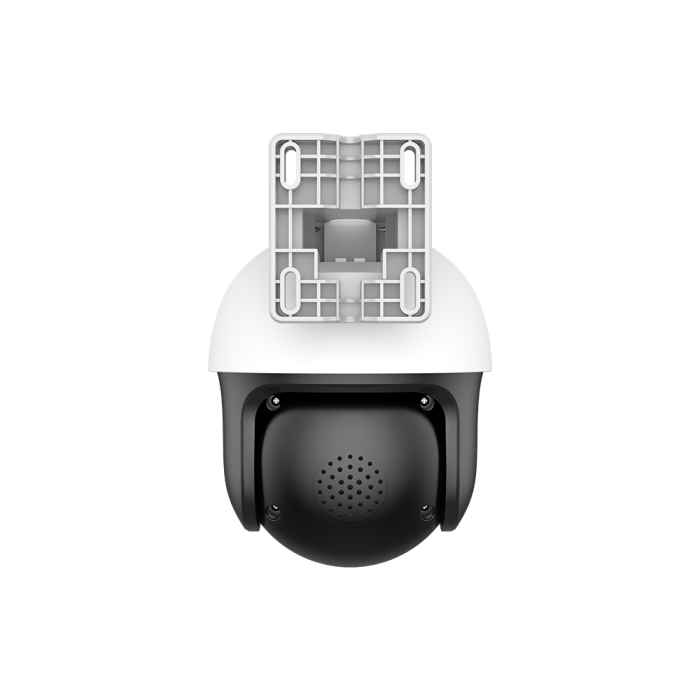

Tenda CH3-WCA

      Camera

Image Sensor

  1/3 Progressive Scan CMOS sensor

Day and Night

  ICR type

      Lens

Focal Length

  4 mm

Aperture

  F1.6

FOV

  Horizontal FOV: 83.3°, Vertical FOV: 53.1°, Diagonal FOV: 91°

      Illuminator

Supplementary Light

  2 IR Lights, 2 Spotlights

Supplementary Light Distance

  Up to 30 m/100 ft (depending on environment)

IR Wavelength

  850nm

Night Vision Mode

  Smart Mode, Full Color Mode, Black & White Mode

      Video

Video Encoding Format

  H.265, H.264

Main Stream Resolution

  2304 ×1296, 1920 × 1080, 1280 × 720

Sub Stream Resolution

  640 × 360, 352 × 288

Frame Rate

  1-30fps, Default 20fps

Bit Rate

  512kbps -- 4096kbps

Bit Rate Control

  CBR,VBR

      Audio

Audio  Encoding Format

  G.711A, G.711U, AAC

Audio Sampling Rate

  8 kHz

Audio Communication

  Two-way Audio, Voice Input


Image Enhancement

  DWDR, BLC, HLC, 3D DNR

Privacy Mask

  4 Areas

      Network

Ethernet Port

  1 RJ45, 10Mbps/100Mbps auto-negotiation Ethernet port

ONVIF

  Support

Protocols

  TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, ARP, WebSockets

Web Browser

  Plug-in free live view: Chrome, Edge, Opera

      Pan&Tilt

Pan Movement Range

  0°--355°

Tilt Movement Range

  0°--90°

Preset

  6

Patrol

  Panoramic Patrol, Preset Patrol

      Wi-Fi

Antenna

  Internal antenna

Wireless Standard

  IEEE 802.11 b/g/n/ax

Transmission Rate

  Up to 287Mbps

Channel Width

  20/40 MHz

Modulation

  DSSS/OFDM/OFDMA

Frequency Band

  2.4GHz: 2412MHz-2472MHz(CH1-CH13)

Transmit Power

  2.4GHz: <0.1W(EIRP)

Security

  64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK

      Alarm

Smart Detection

  Motion Detection, Tempering Detection, Human Detection, Vehicle Detection

Smart Linkage

  Sound&light Alert, Human Tracking

DIY Audio

  3 Customized Audios

      Interface

Audio Input

  Built-in MIC, adjustable microphone volume

Audio Output

  Built-in Speaker, 79 dBA (Alarm sound at 1 meter), adjustable sound level

Storage

  Built-in Micro SD Card Slot, Up to 512 GB

Reset Button

  Support

LED Indicator

  Dual Color (red & blue)
   LED Indicator

      General

Power

  12 V DC, 1A, Ø5.5mm&Ø2.1mm Power Plug

Material

  Plastic

Smart Integration

  Amazon Alexa

Product Dimension

  120mm x 120mm x 146mm (4.7'' × 4.7'' × 5.7'')

Package Dimension

  167 mm x 131 mm x 251 mm (6.6'' × 5.2'' × 9.9'')

Product Weight

  367g (0.81lb)

With Package Weight

  860g (1.89lb)

Protection Level

  IP65

Installation Method

  Wall Mounting, Ceiling Mounting, Pole Mounting

Certification

  CE, RoHS, FCC, RCM, UKCA

Temperature

  Operating Temperature: -30°C ~ 60°C (-22°F ~ 140°F)
  Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F)

Humidity

  Operating Humidity: 10% ~ 95% RH (non-condensing)
  Storage Humidity: 3% ~ 95% RH (non-condensing)

Package Contents

  Camera
  Power Adapter (cord length: 3m)
  Installation Template
  Mounting Bracket
  Mounting Accessories Kit
  Waterproof Kit
  Quick Installation Guide
